BOTTOM
11/13/10
Plans by Tom Gilmer. |
Printing the plan on the 3 foot plotter. |
1:20th scale plan. |
Station patterns in 1:20 scale. |
11/19
Forms on building board. |
9/17/11
Keel cut and fitted. |
10/8
Table saw rigged for ripping planks. |
ripping a plank. |
 |
planks! |
10/8
Starboard garboard going on. |
10/10
A few more strakes. |
10/15 |
10/21 |
 |
10/22
Sheer strake. |
Planking from the sheer
down connects with the transom. |
 |
10/23
Scribed the waterline and
planking continues. |
 |
10/27
Pulled almost all the pins, knocked off some bumps and ridges with the plane, and sanded a bit. |
10/29 |
10/30 |
 |
10/31 |
 |
11/1
Final plank. |
11/3
Pulling out form #10. |
11/4
Some more putty (note can in background). |
All sanded. |
Transome trimmed down to where it should be. |
11/5
Fully taped |
11/6
Made a stand |
11/11
3oz cloth laid on. |
11/12
Glassed. |
11/13
Unglassed. |
Forms pulled out. |
11/20: Resin inside. |
12/25: Port side glassed. |
12/27: Starboard side glassed. |
12/30: Transom glassed. |
1/18: Deck clamps installed and main beams fitted. |

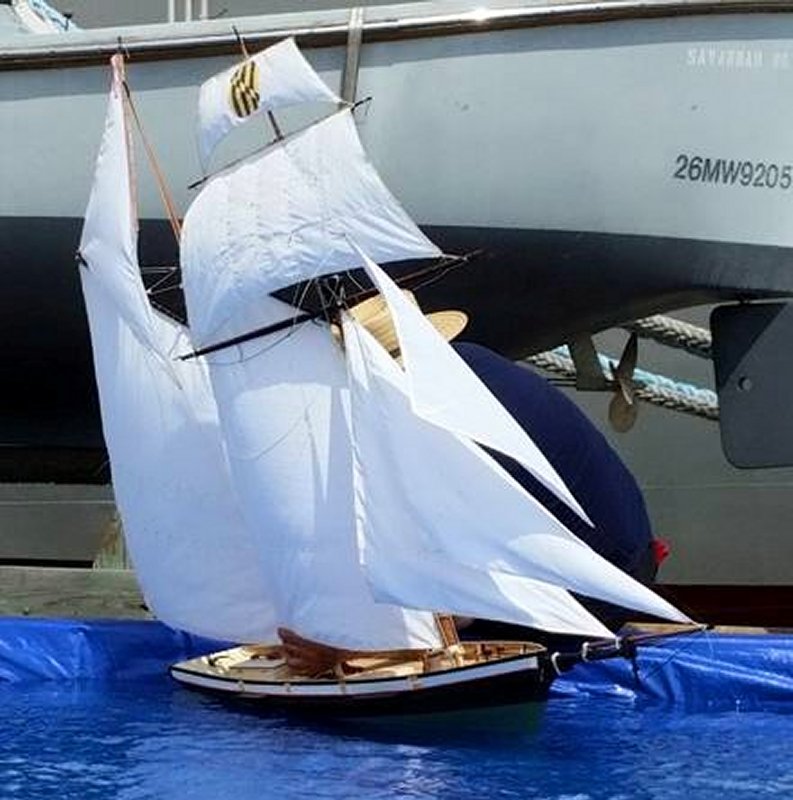

1/19: First float in the tub. |
. |
. |
